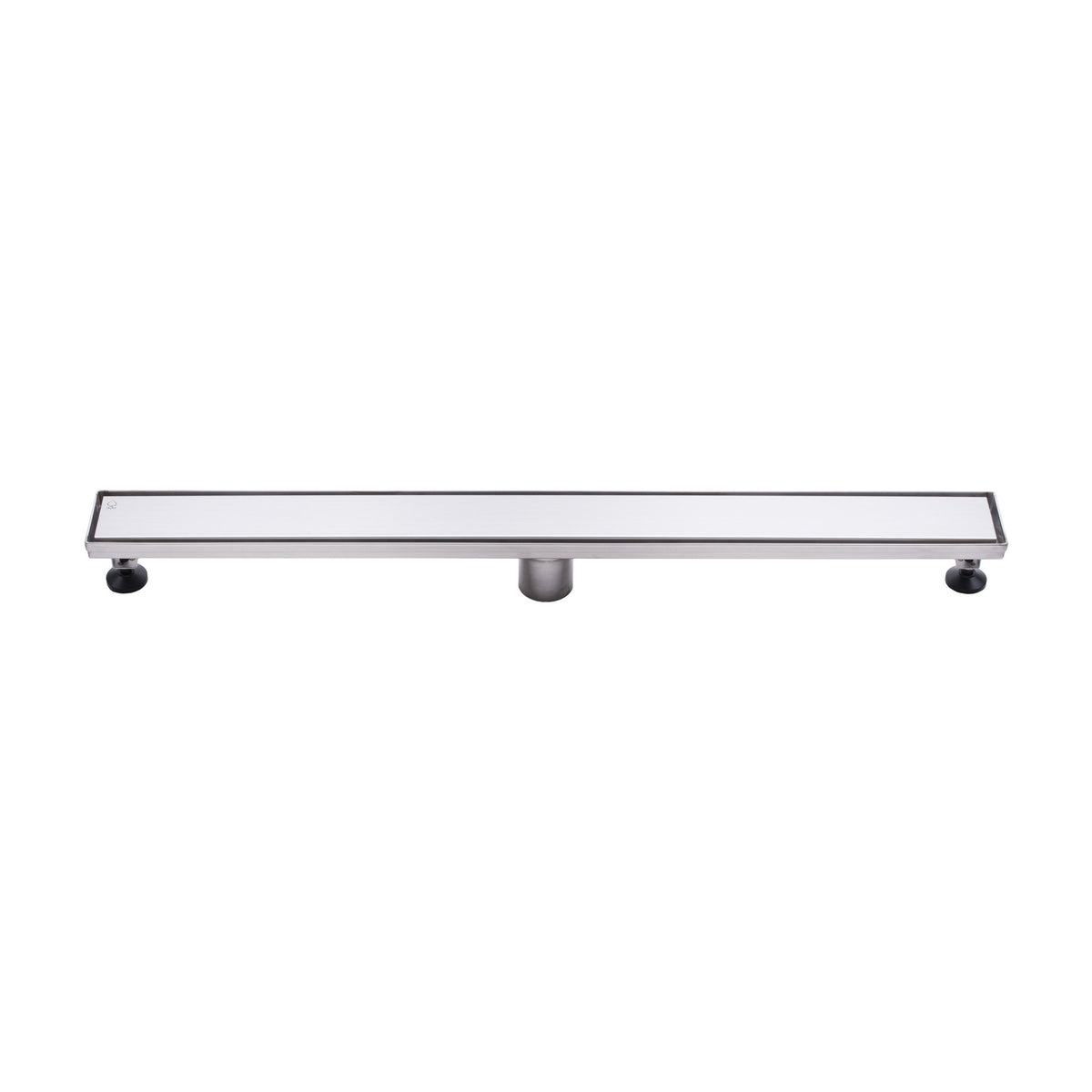

BAI Stainless Steel 32-inch Linear Shower Drain with Solid Style

The drain is constructed from high quality 304 stainless steel, built to hold up in residential showers, steam rooms, and wet rooms without corrosion or warping over time. Adjustable legs allow precise floor height calibration to match your tile thickness exactly during installation. The removable grate gives easy access to the drain interior for cleaning without tools, and the standard 2-inch drain outlet connects to existing floor plumbing for compatibility with both new construction and bathroom renovation projects.

Compatible with bonded waterproofing assemblies and all standard floor structures including joisted wood subfloors and concrete slabs. Can be installed adjacent to a wall or at intermediate locations in the shower floor.

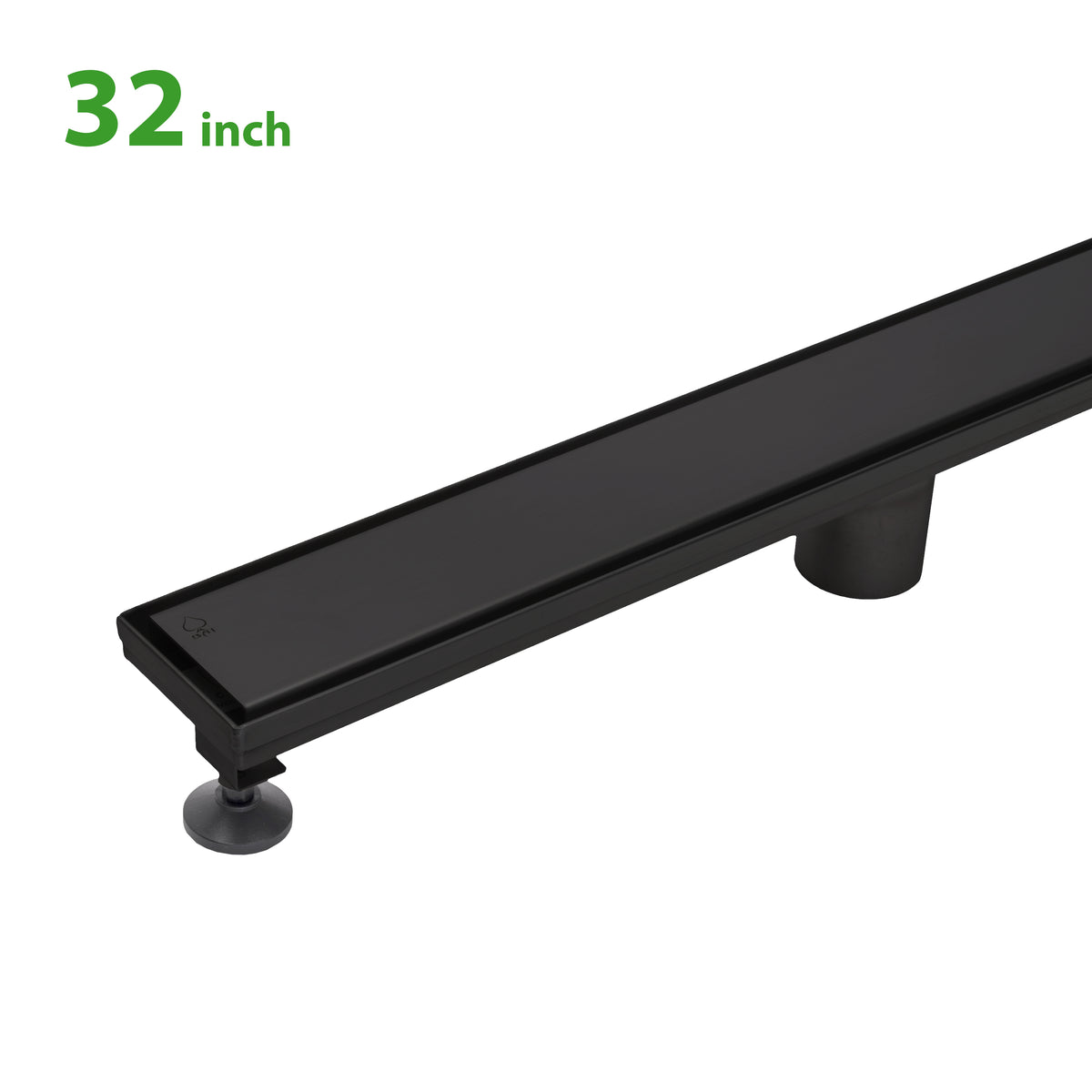

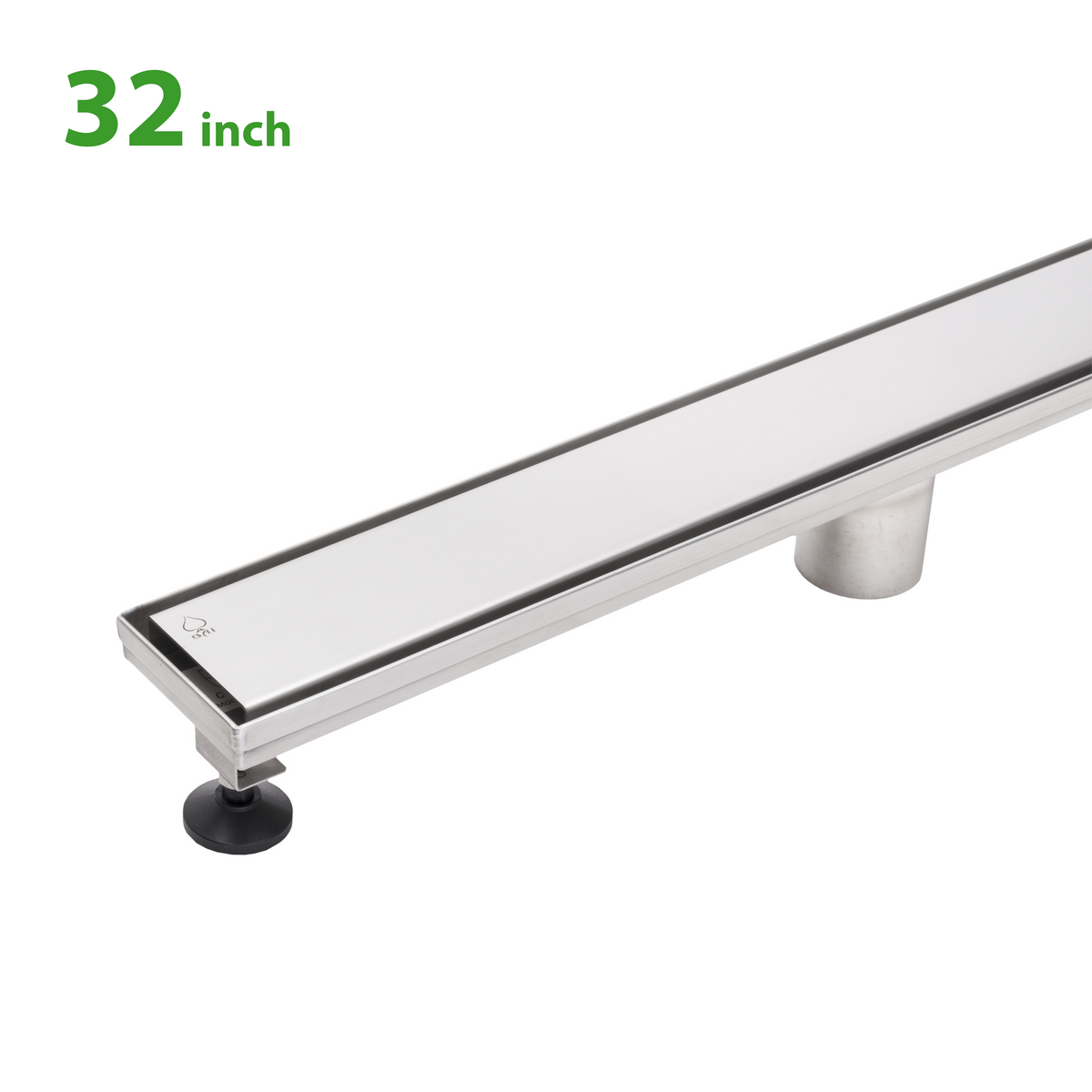

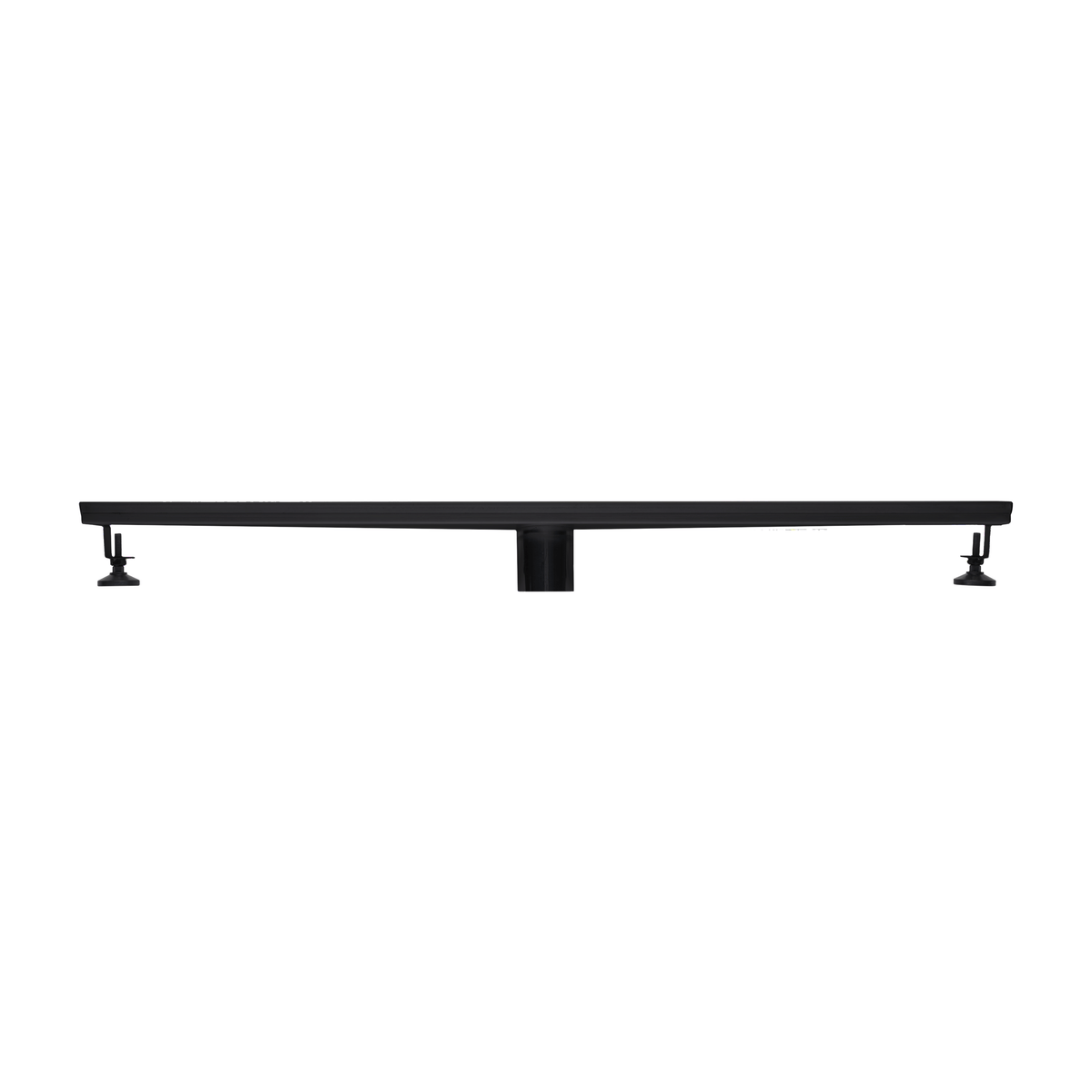

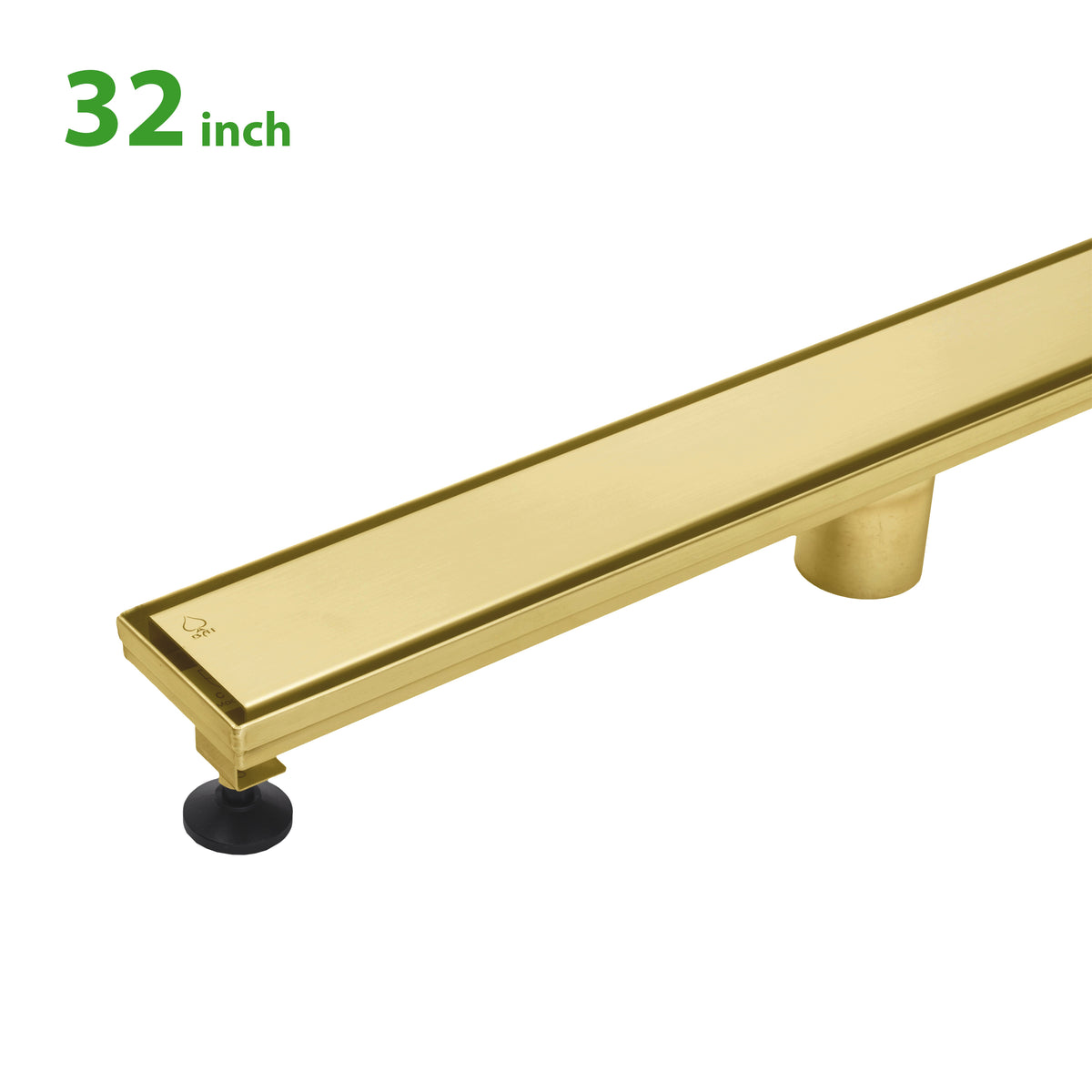

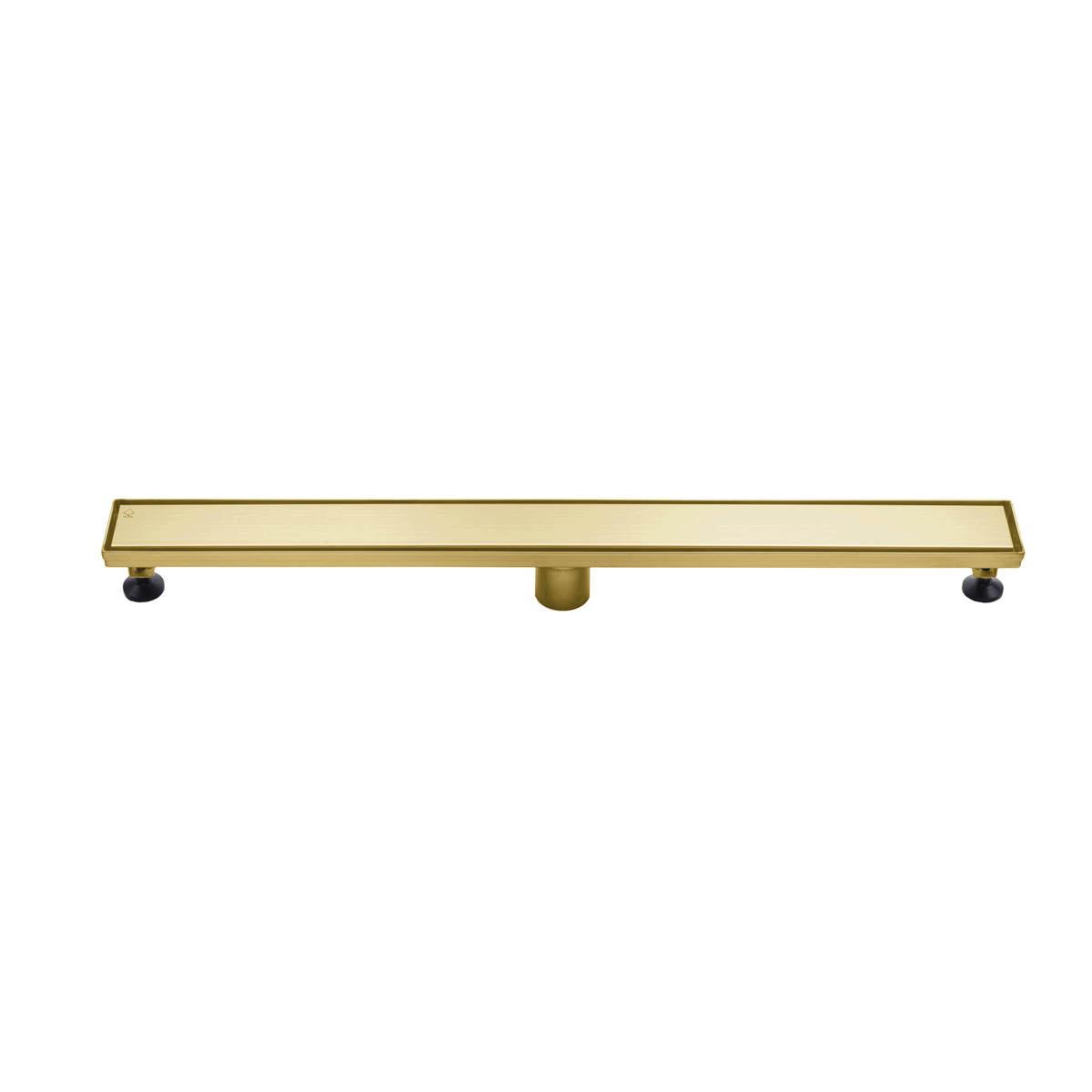

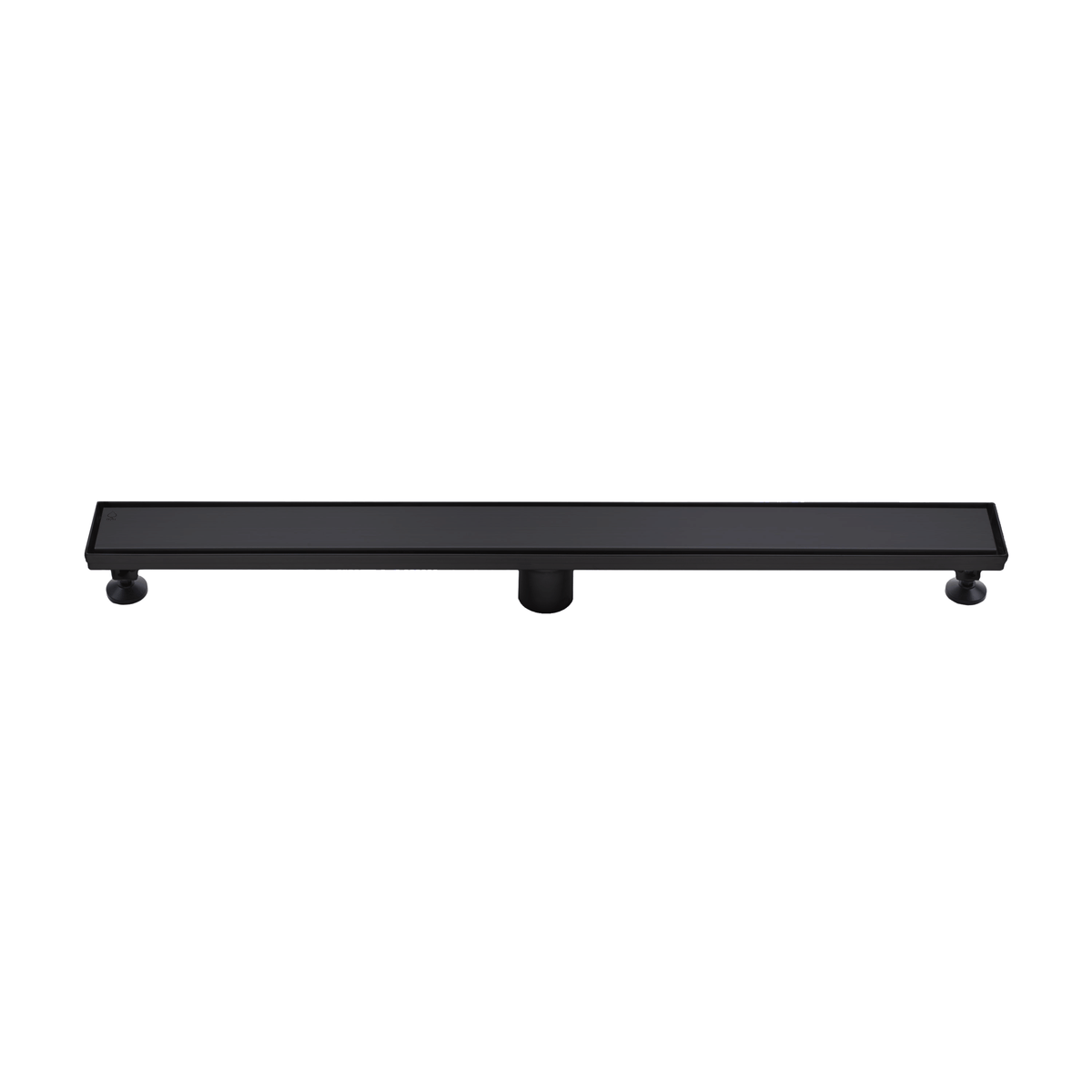

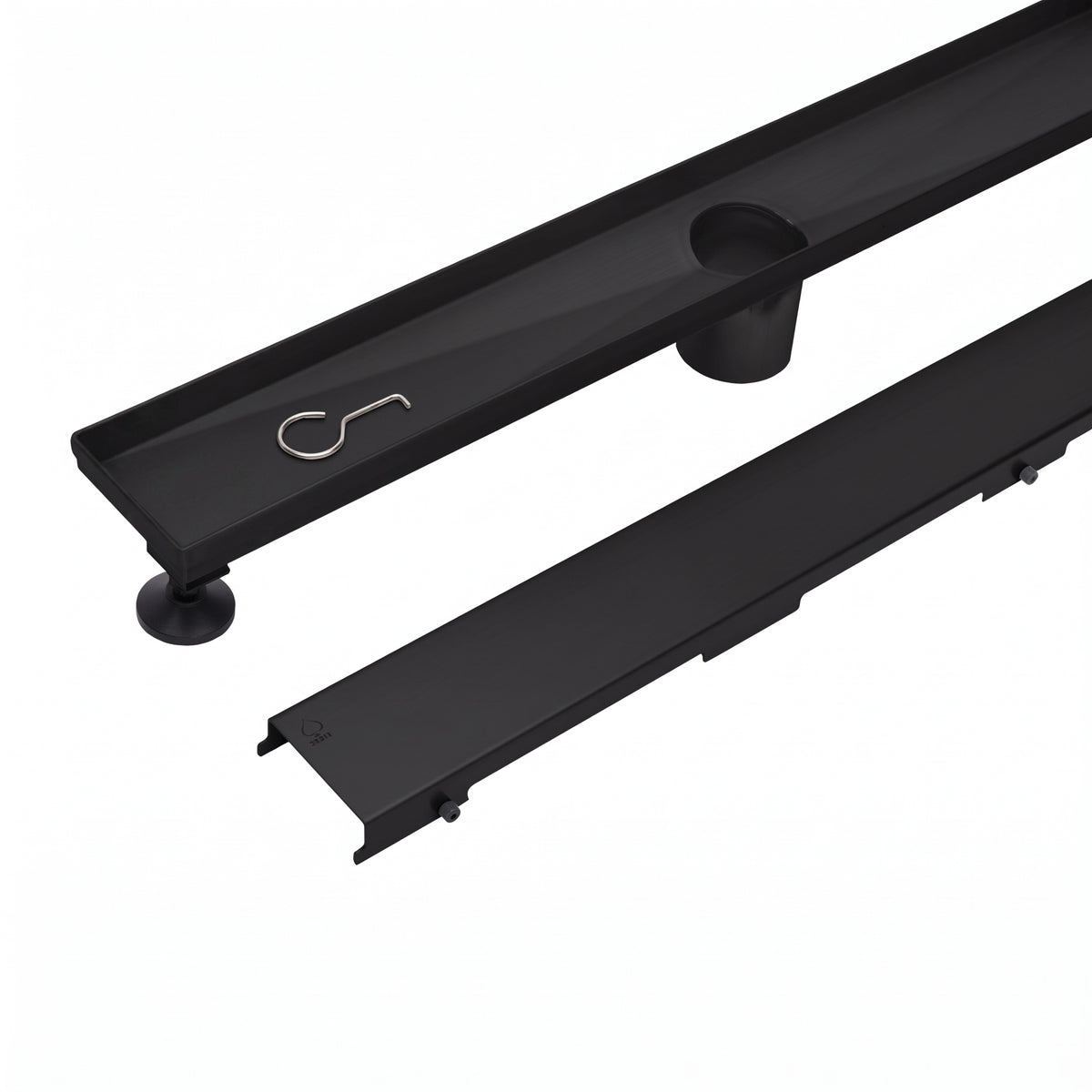

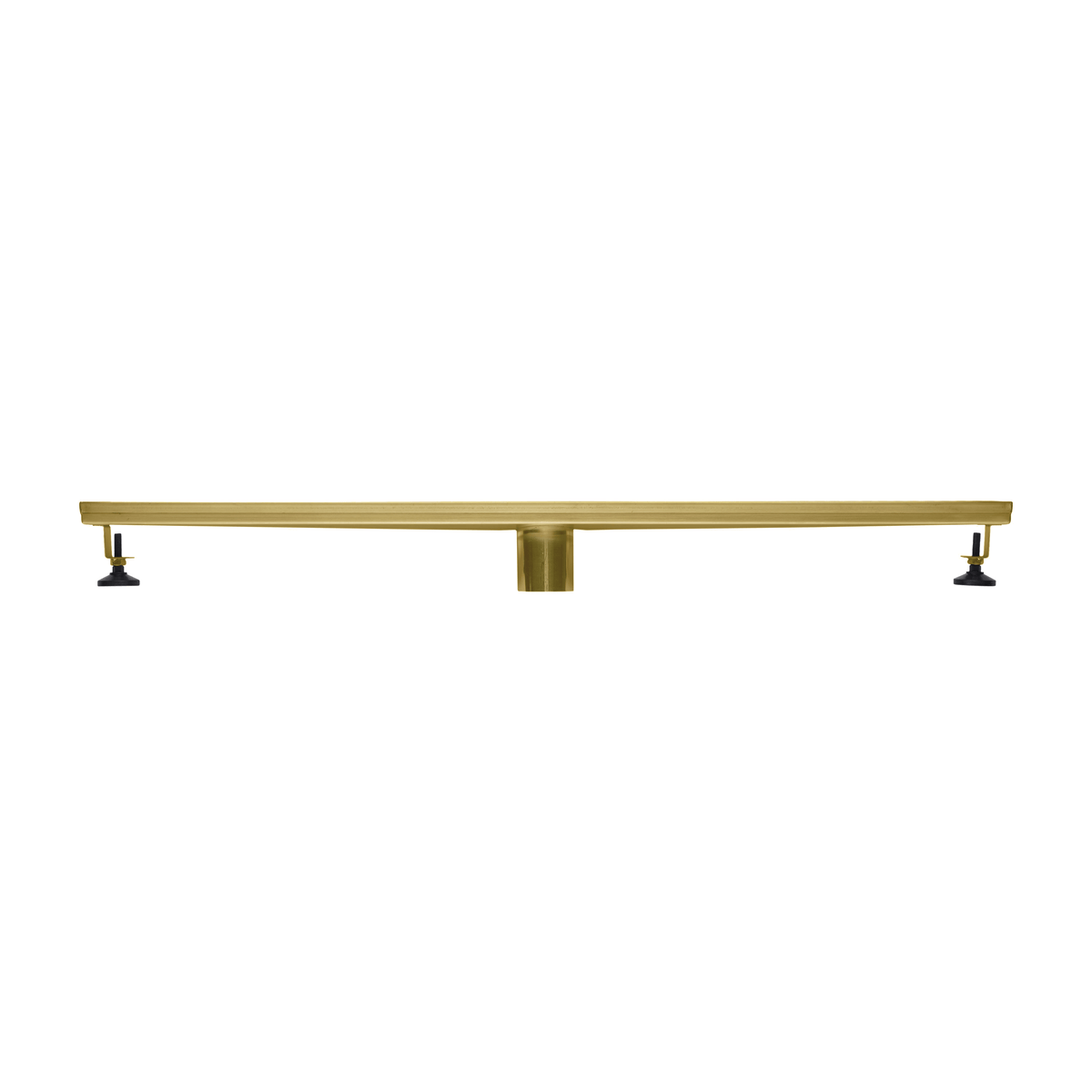

Available in Stainless Steel, Matte Black, or Brushed Gold finish. IAPMO certified and compliant with the Uniform Plumbing Code — approved for residential and commercial use across the US and Canada.

Important: A membrane connector is required for proper installation and is not included. Choose from the BAI 0584 PVC Membrane Connector (joisted wood floors) or BAI 0549 Cast Iron Membrane Connector (concrete floors).

Features:

• Modern 32-inch linear shower drain with solid style cover design

• Made from high quality thick 304 stainless steel

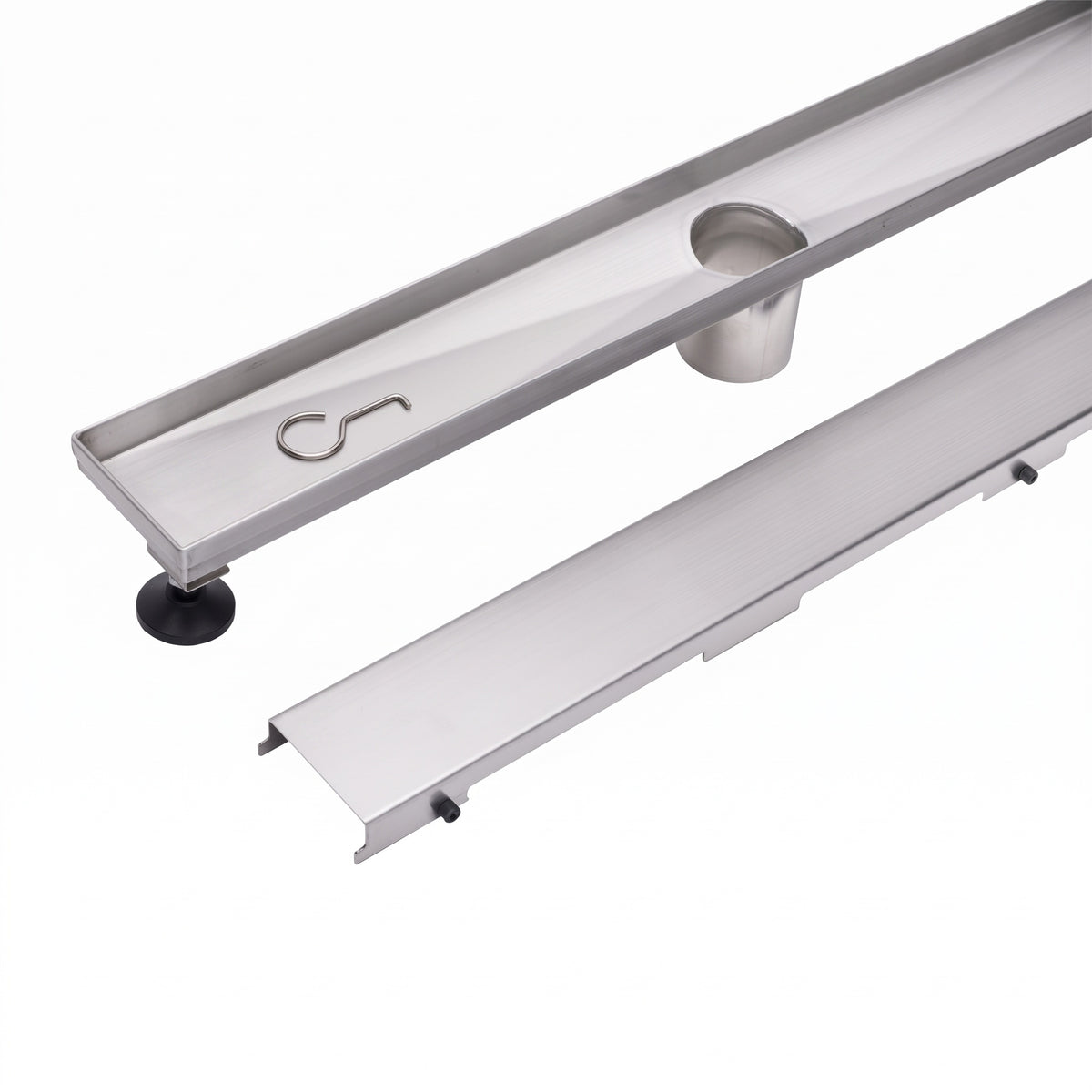

• Removable grate for easy cleaning with strainer included
• Standard 2" drain hole
• One year manufacturer warranty

Specifications:

• cUPC Certified
• Drain Cover Thickness: 18 Gauge
• Drain Stand Thickness: 18 Gauge

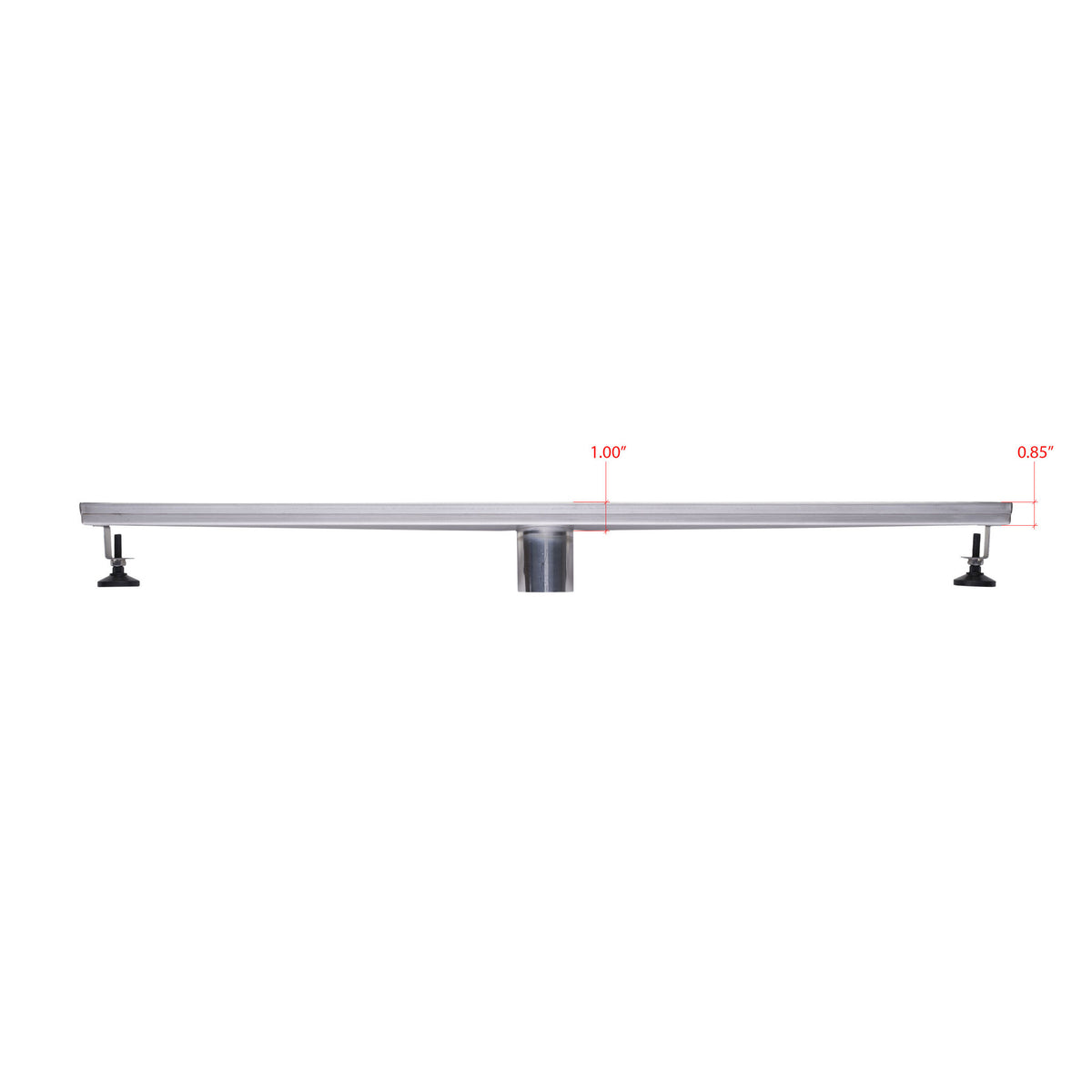

• Dimensions: 32.0" x 3.0" x 3.1"
• Net Weight: 5.5 lbs

Downloads:

• Technical Drawings
• Installation Diagram
