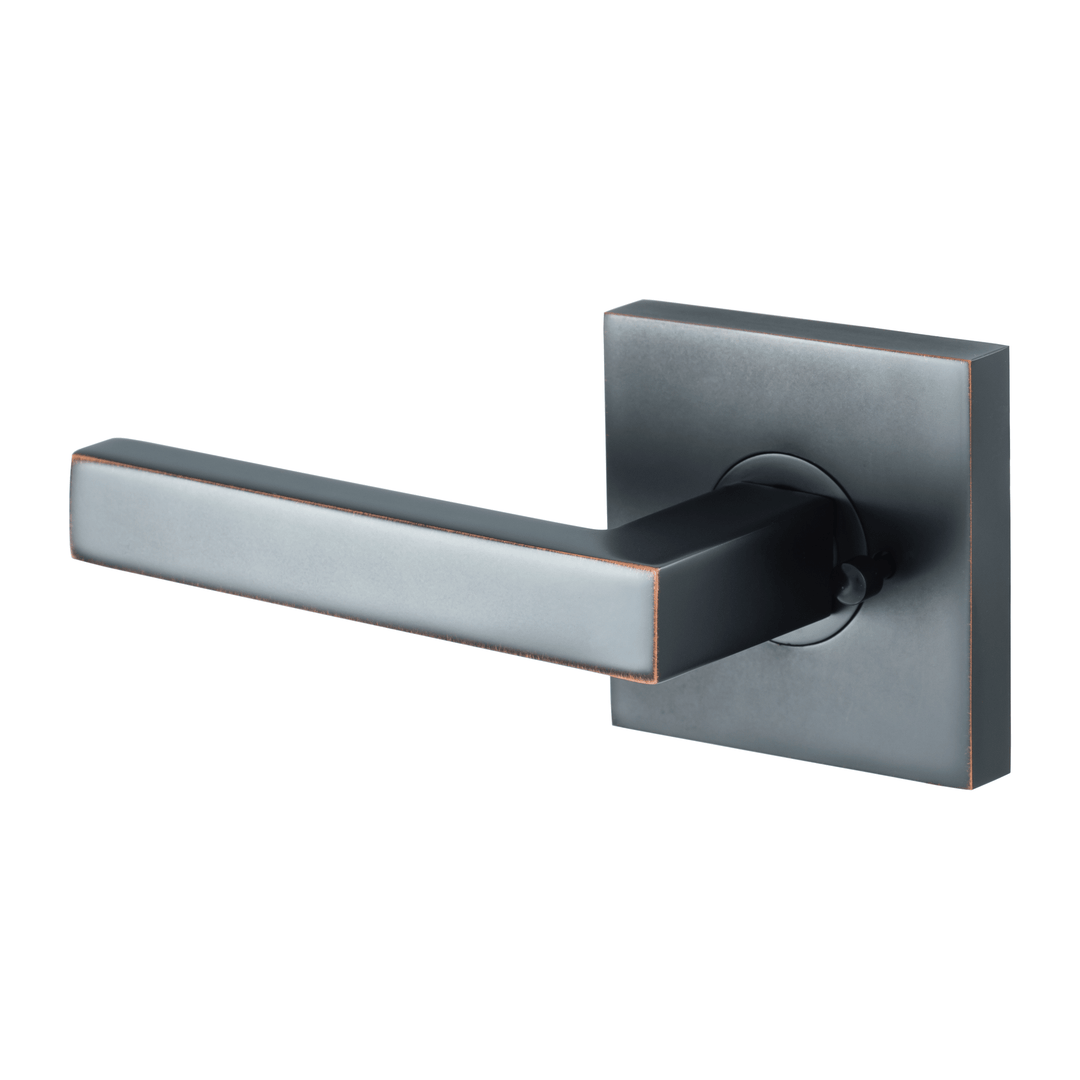

BAI 3062 Modern Passage Door Handle Lever Set with Privacy Pin Function

Modern Door Handle Set

Could be used for passage doors in closets and hallways or with privacy lock function for bathrooms and bedrooms. Suitable for Left and Right handed doors (reversible). Compatible Dummy / Inactive Handle Set: BAI 3063

Features:

• Matte black oil rubbed finish
• High quality zinc alloy solid construction interior door handles
• Modern design with concealed screws (no screws show)
• Suitable for left and right handed doors (reversible latch mechanism)
• Can be used as a privacy or passage handle (removable locking pin)
• Fits standard 2-1/8" bore door prep
• For use with standard 2-3/8" backset
• For doors with a thickness between 1-1/8" to 1-3/4"

Specifications:

• Material: Zinc Alloy
• Net Weight: 2.5 lbs
• Box Size: 9.0" x 7.5" x 3.5"
• UPC# 813509021984
• SKU # DH-PP3062RO

Downloads:

• Installation Manual

In the box:

• Two Levers
• Two Decorative Rosettes
• Backset Latch
• Strike Plate
• Face Plate
• Privacy Pin
• Emergency Unlocking Pin
• Mounting Screws / Bolts
• Plastic Dust Cover

Related Items:

BAI 3063 Dummy / Inactive

Optional Accessories:

 BAI 3099 Backset Latch (2-3/4")
